Deye · SUN-6K-OG01LP1-EU-AM2
Deye 6kW Off-Grid Inverter
The dependable core of a serious residential system.
A 6 kW single-phase off-grid inverter built for homes that need to run independently of the grid. Dual MPPT trackers accept up to 12 kW of PV, and both grid and generator inputs are supported for charging when the sun is not available.
- Pure sine wave output at 230 V / 50 Hz
- Accepts up to 12 kW of PV across 2 MPPT trackers
- Grid and generator charging input, 35 A each
- IP65 enclosure with intelligent air cooling
- Rated output
- 6 kW
- Phase
- Single phase
- Battery
- 48 V nominal
- MPP trackers
- 2
Warranty: 5 years standard, extendable to 10 years
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- IEC/EN 61000-6-1/2/3/4
- IEC/EN 62109-1
- IEC/EN 62109-2
AC Output
- Rated AC output power
- 6000 W / 6000 VA
- Max AC output current
- 26.1 A
- Peak power (off-grid)
- 2 × rated power, 10 s
- Rated output voltage
- 230 V
- Rated output frequency
- 50 / 60 Hz
- Output type
- L + N + PE
- Output waveform
- Pure sine wave
- Total harmonic distortion (THDi)
- < 3%
PV String Input
- Max PV access power
- 12 000 W
- Max PV input power
- 9600 W
- Max PV input voltage
- 500 V
- Start-up voltage
- 125 V
- MPPT voltage range
- 150 – 425 V
- Rated PV input voltage
- 370 V
- Max operating PV input current
- 18 + 18 A
- Max input short-circuit current
- 27 + 27 A
- No. of MPP trackers / strings per tracker
- 2 / 1 + 1
Battery
- Battery type
- Lead-acid or lithium-ion
- Battery voltage range
- 40 – 60 V
- Max charging current
- 135 A
- Max discharging current
- 135 A
- Charging strategy for Li-ion
- Self-adaption to BMS
AC Input (Grid & Generator)
- Max AC input power to battery
- 6000 W
- Rated input voltage / range
- 230 V / 90 – 280 V
- Rated input frequency
- 50 / 60 Hz
- Grid input current
- 35 A
- Generator input current
- 35 A
Efficiency
- Max efficiency
- 97.6%
- Euro efficiency
- 96.5%
- MPPT efficiency
- > 99%
General
- Operating temperature range
- −40 to +60 °C, derating above 45 °C
- Permissible ambient humidity
- 0 – 100%
- Permissible altitude
- 3000 m
- Noise
- < 45 dB
- Ingress protection (IP) rating
- IP65
- Inverter topology
- Non-isolated
- Over voltage category
- OVC II (DC), OVC III (AC)
- Cabinet size (W × H × D)
- 306 × 427.5 × 175.77 mm
- Weight
- 12.5 kg
- Type of cooling
- Intelligent air cooling
- Communication interface
- RS485 / RS232 / CAN
- Monitoring
- GPRS / WiFi / Bluetooth / 4G / LAN (optional)
- Surge protection level
- Type II (DC), Type II (AC)
Applications
Where this fits
- Residential homes running fully off-grid
- Apartments and duplexes with heavy evening load
- Small offices, shops and clinics
- Properties replacing a petrol or diesel generator
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 5kWh Lithium Battery
2 × 5.12 kWh units in parallel are needed to support the 6kW at full rated output.
Deye 10kWh Lithium Battery
A single 10.64 kWh unit supports the 6kW at full rated output.
Deye 12kWh Lithium Battery
A single 12.03 kWh unit supports the 6kW at full rated output.
Deye 16kWh Lithium Battery
A single 16 kWh unit supports the 6kW at full rated output.
Documentation

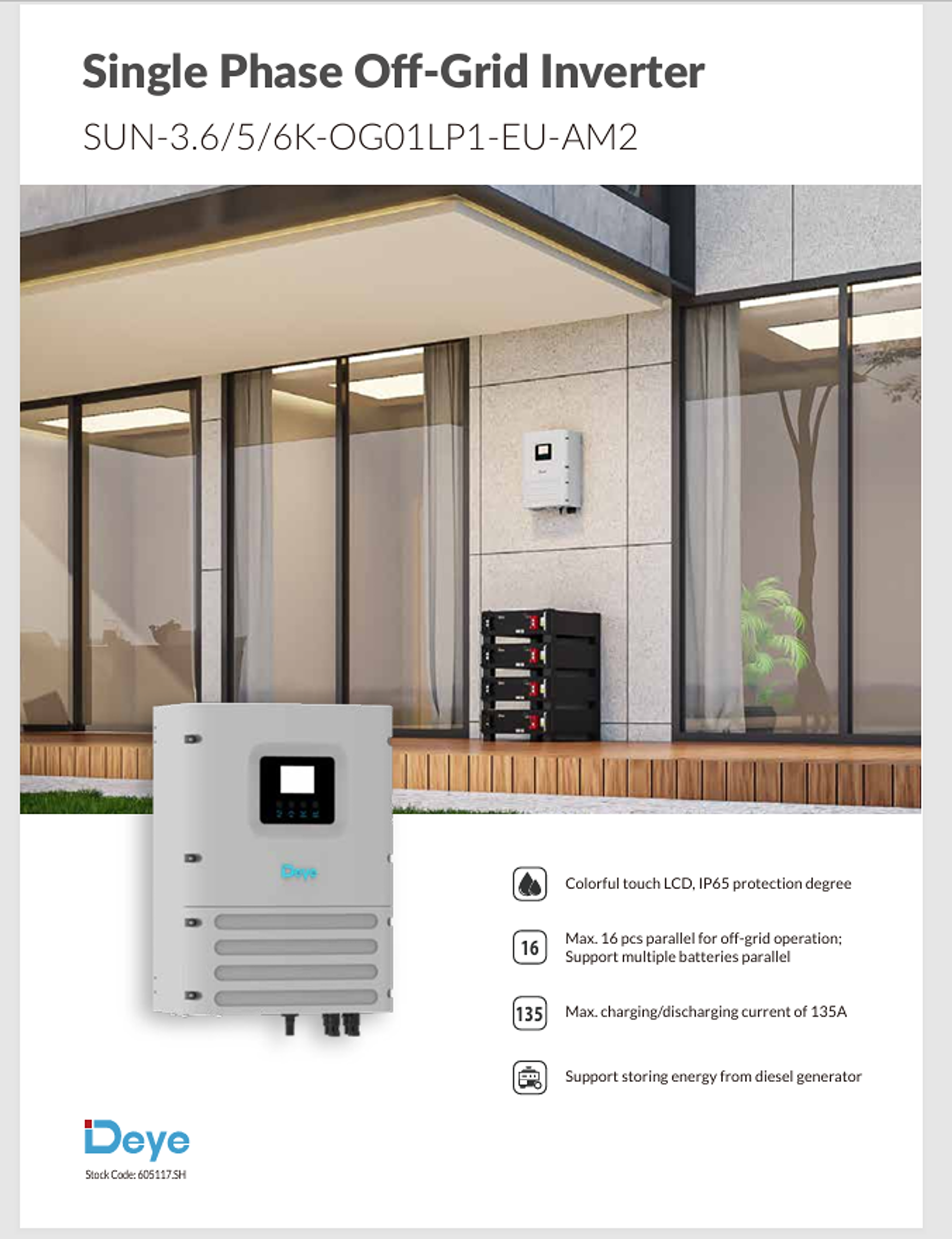

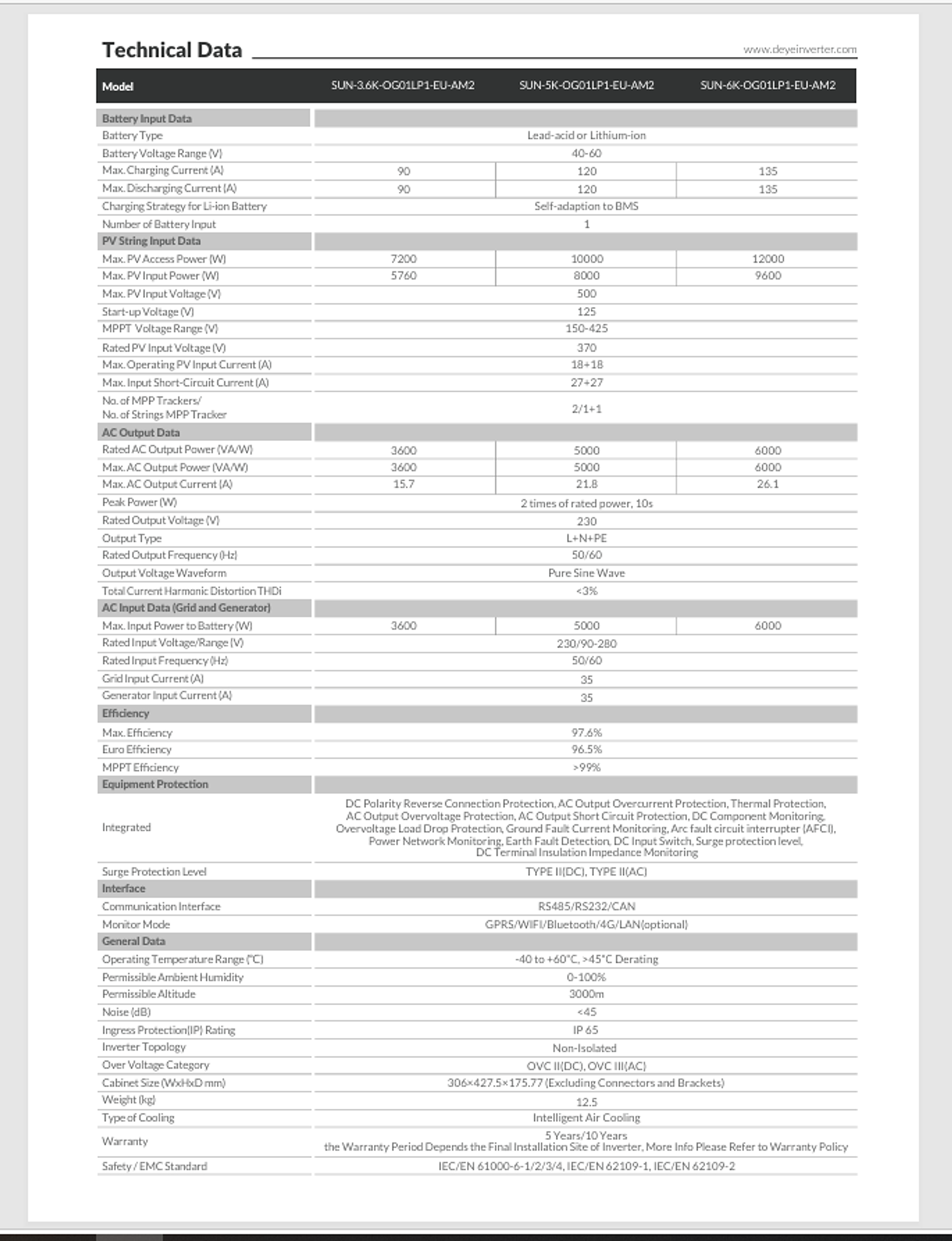

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
