Deye · SE-F12
Deye 12kWh Lithium Battery
More reserve, same footprint discipline.
A 12.03 kWh LiFePO4 unit at 235 Ah. The step up for households that want a full night of autonomy with air conditioning running, without moving to a floor-standing rack.
- 12.03 kWh nominal, 9.62 kWh usable at 80% DoD
- 235 Ah at 51.2 V nominal
- Compact 400 mm wide wall-mount format
- Up to 32 units in parallel
- Nominal energy
- 12.03 kWh
- Usable energy
- 9.62 kWh
- Capacity
- 235 Ah
- Voltage
- 51.2 V
Warranty: 5 years
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- UN38.3
- CE
- CB
Electrical
- Model
- SE-F12
- Battery chemistry
- LiFePO4
- Nominal energy
- 12.03 kWh
- Usable energy (80% DoD)
- 9.62 kWh
- Capacity
- 235 Ah
- Nominal voltage
- 51.2 V
- Operating voltage
- 44.8 – 57.6 V
System
- Scalability
- Max. 32 pcs in parallel
- Battery management
- Integrated BMS
Mechanical
- Dimensions (W × H × D)
- 400 × 559 × 233 mm
- Weight (approximate)
- 84 kg
Applications
Where this fits
- Larger homes with overnight air conditioning
- Properties with boreholes and water pressure systems
- Pairing with 10 kW and 12 kW inverters
- Guest houses and serviced apartments
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 6kW Off-Grid Inverter
A single 12.03 kWh unit supports the 6kW at full rated output.
Deye 10kW Hybrid Inverter
A single 12.03 kWh unit supports the 10kW at full rated output.
Deye 12kW Hybrid Inverter
2 × 12.03 kWh units in parallel are needed to support the 12kW at full rated output.
Deye 16kW Three Phase Hybrid Inverter
2 × 12.03 kWh units in parallel are needed to support the 16kW at full rated output.
Documentation

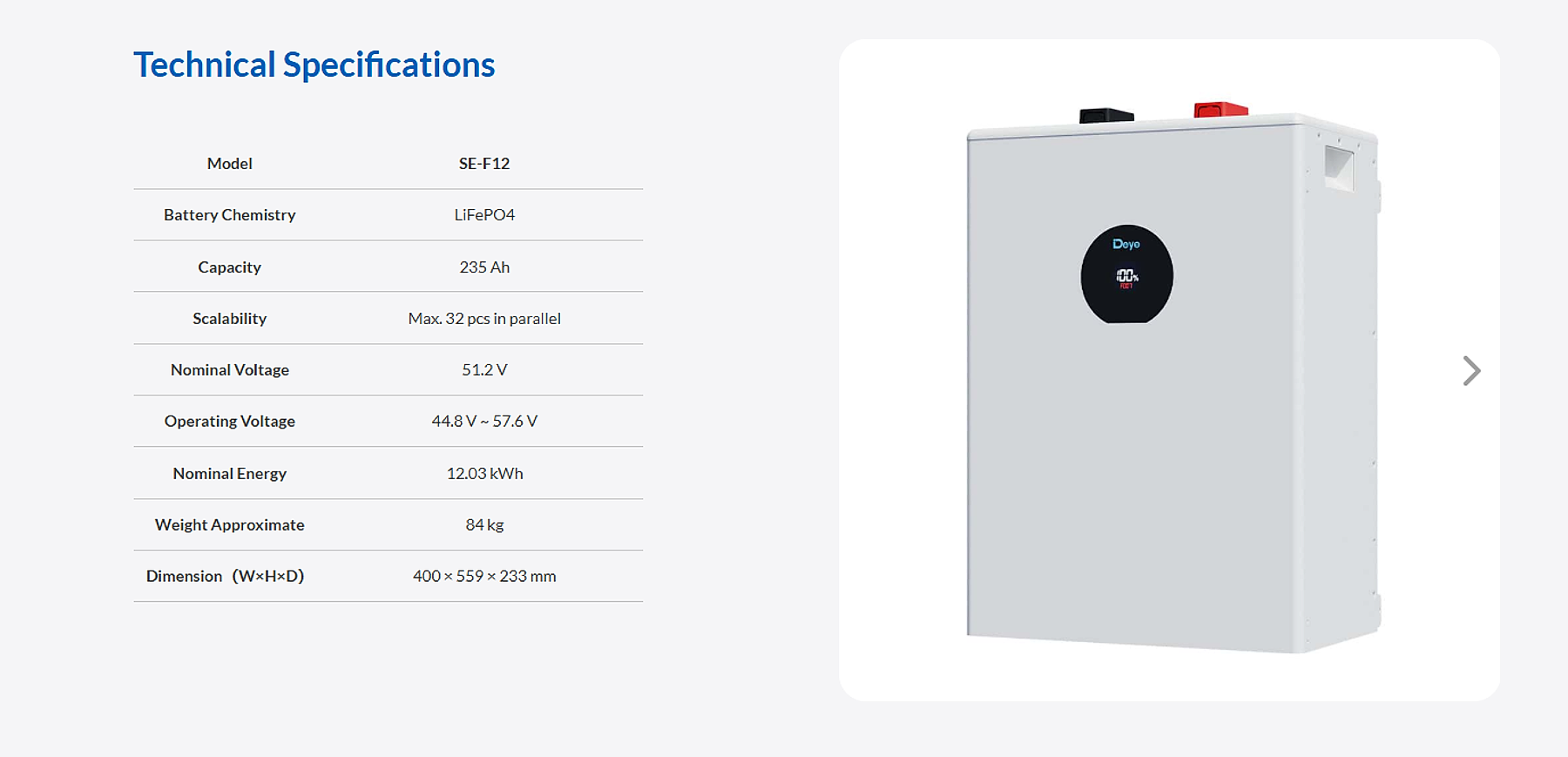

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
