Find My Solar System
WHAT DOES YOUR PROPERTY ACTUALLY NEED?
Tell us what you run and for how long. We will calculate your real consumption and specify the inverter, battery bank and array to match.
Everything is calculated for the Nigerian grid at 230 V / 50 Hz.
Your property
4.4 peak sun hours per day
Affects whether three phase is considered
What do you run?
LED bulb
10 W
12Security / floodlight
30 W
0
Your system
Live- Daily use
- 6.45 kWh
- After dark
- 4.18 kWh
- Peak demand
- 0.5 kW
- Connected load
- 0.7 kW

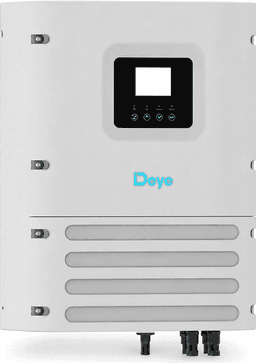

InverterDeye 6kW Off-Grid InverterSUN-6K-OG01LP1-EU-AM2 · Single phase

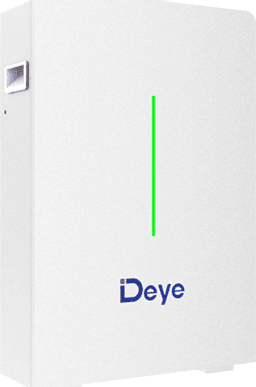

Battery1 × Deye 10kWh Lithium Battery9.58 kWh usable · RW-G10.6

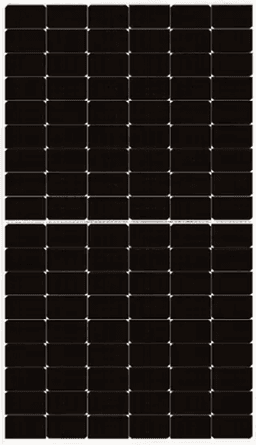

Solar array3 × JinkoSolar Tiger Neo III 650W1.95 kWp · approx. 8.1 m² of roofEstimated annual generation
≈ 2,443 kWh
Based on 4.4 peak sun hours for South West and a 78% system derate for temperature, soiling, wiring and conversion losses.
An engineering estimate, confirmed at site survey before any quotation is issued.
Where your energy goes
Refrigerator — double door
2.4 kWh
Ceiling fan × 3
2.25 kWh
LED bulb × 12
0.72 kWh
Television — 55"
0.72 kWh
Router / internet
0.36 kWh
Common Questions
Sizing,
explained.
How accurate is this solar calculator?
It is an engineering estimate built on your stated appliances, their duty cycles and the peak sun hours for your zone of Nigeria. It is accurate enough to specify equipment and budget, and every design is confirmed at site survey before a quotation is issued.
What does the calculator actually work out?
Four things: your total daily energy use in kWh, how much of that falls after dark, your peak demand in kW after a diversity factor, and the start-up surge of your largest motor load. Equipment is then chosen to satisfy all four, not just the headline figure.
Why does my location change the result?
Because the same array produces different energy in different places. We use conservative annual averages by zone — 4.4 peak sun hours in the South West against 5.9 in the North East — so a system sized in Lagos is not under-built for the rainy season, and one sized in Maiduguri is not over-built.
Is the calculator free, and do I have to buy anything?
It is free and there is no obligation. You can take the specification it produces and compare it against any other supplier — that is rather the point of publishing the engineering assumptions alongside it. If you would like us to quote, the result carries through to our quotation form, or you can send it to us on WhatsApp at 0806 849 5016.
Intelligent Solar Energy. Reliable Power.
Find out exactly what your property needs.
Two minutes with the sizing tool, or one conversation with our team. Either way you end up with a specification rather than a guess.
