Deye · RW-G10.6
Deye 10kWh Lithium Battery
The volume seller, and for good reason.
A 10.64 kWh LiFePO4 battery rated for more than 6000 cycles, with a built-in circuit breaker and intelligent BMS. Charges at 200 A and discharges at 240 A, so it keeps up with a hybrid inverter under real household load.
- 10.64 kWh nominal, 9.58 kWh usable
- ≥ 6000 cycles with a 5-year warranty
- 200 A charge, 240 A discharge
- Built-in circuit breaker and intelligent BMS
- Nominal energy
- 10.64 kWh
- Usable energy
- 9.58 kWh
- Capacity
- 208 Ah
- Voltage
- 51.2 V
Warranty: 5 years
Supplied for: Nigerian grid, 230 V / 50 Hz

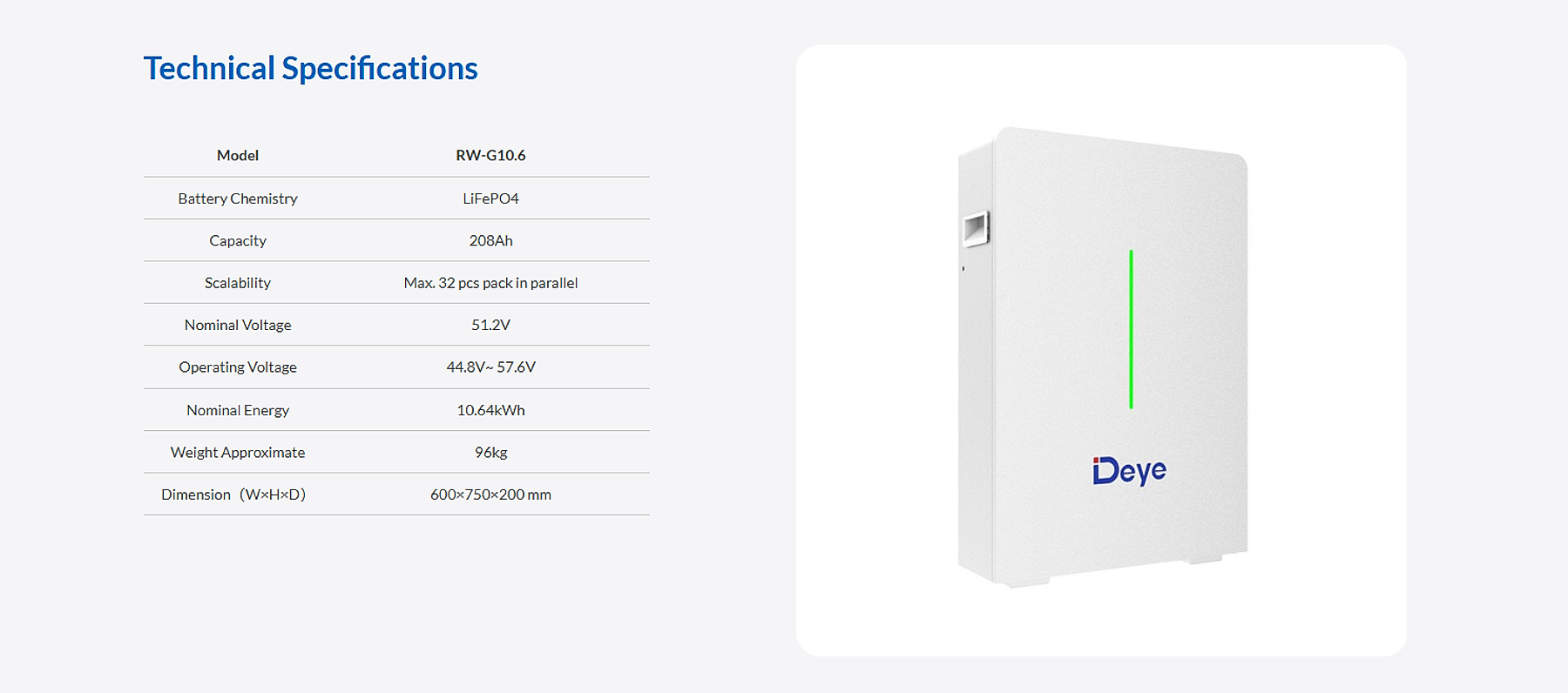

Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- UN38.3
- CE
- CB
Electrical
- Model
- RW-G10.6
- Battery chemistry
- LiFePO4
- Nominal energy
- 10.64 kWh
- Usable energy
- 9.58 kWh
- Capacity
- 208 Ah
- Nominal voltage
- 51.2 V
- Operating voltage
- 44.8 – 57.6 V
- Max charging current
- 200 A
- Max discharging current
- 240 A
Performance & Safety
- Cycle life
- ≥ 6000 cycles
- Scalability
- Max. 32 units in parallel — up to 340 kWh
- Operating temperature (discharge)
- −20 to 55 °C
- Operating temperature (charge)
- 0 to 55 °C
- Safety features
- Built-in circuit breaker and intelligent BMS
Mechanical
- Dimensions (W × H × D)
- 600 × 750 × 200 mm
- Weight (approximate)
- 96 kg
Applications
Where this fits
- Standard family homes
- Overnight backup including freezers and pumps
- Pairing with 6 kW to 10 kW inverters
- Offices, clinics and retail units
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 6kW Off-Grid Inverter
A single 10.64 kWh unit supports the 6kW at full rated output.
Deye 10kW Hybrid Inverter
A single 10.64 kWh unit supports the 10kW at full rated output.
Deye 12kW Hybrid Inverter
2 × 10.64 kWh units in parallel are needed to support the 12kW at full rated output.
Deye 16kW Three Phase Hybrid Inverter
2 × 10.64 kWh units in parallel are needed to support the 16kW at full rated output.
Documentation

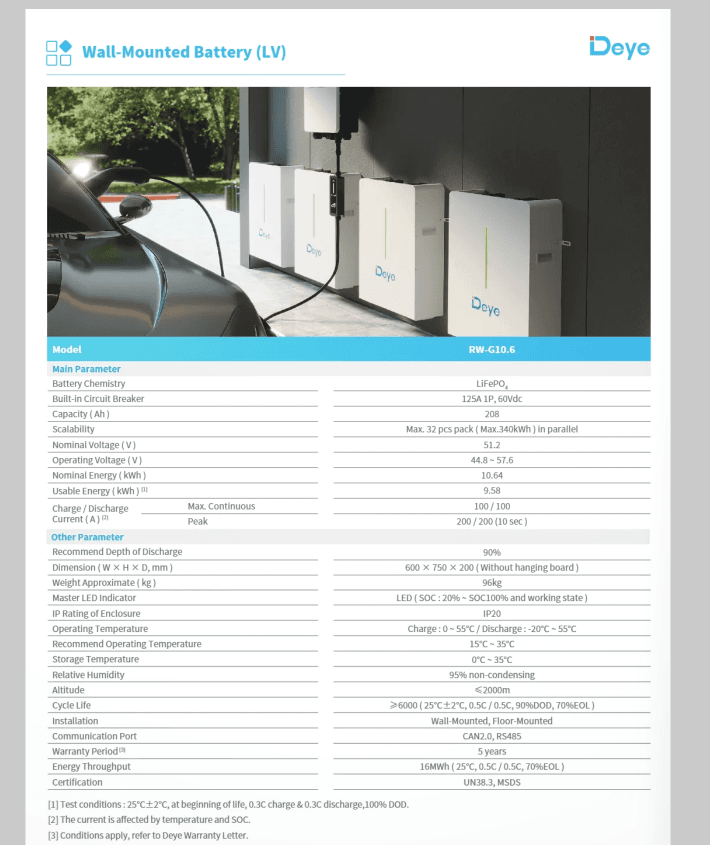

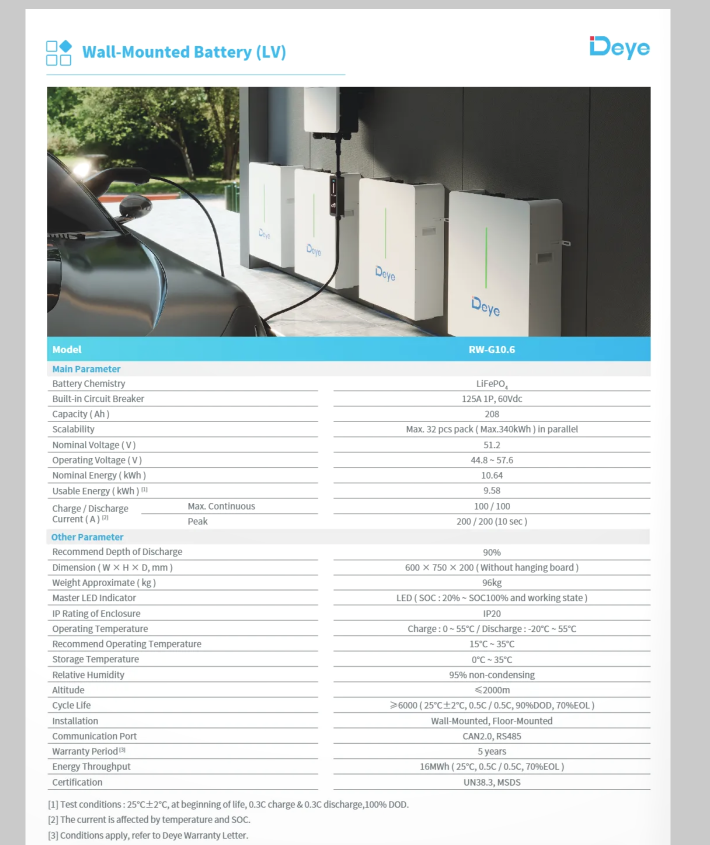

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
