Deye · SE-F5
Deye 5kWh Lithium Battery
Entry-level storage that still runs all night.
A wall-mounted 5.12 kWh LiFePO4 battery with integrated BMS. The right starting point for an apartment or a modest home, and the right building block for a system you intend to grow.
- 5.12 kWh nominal, 4.10 kWh usable at 80% DoD
- 100 Ah at 51.2 V nominal
- Safe, long-life LiFePO4 chemistry
- Up to 32 units in parallel
- Nominal energy
- 5.12 kWh
- Usable energy
- 4.1 kWh
- Capacity
- 100 Ah
- Voltage
- 51.2 V
Warranty: 5 years
Supplied for: Nigerian grid, 230 V / 50 Hz

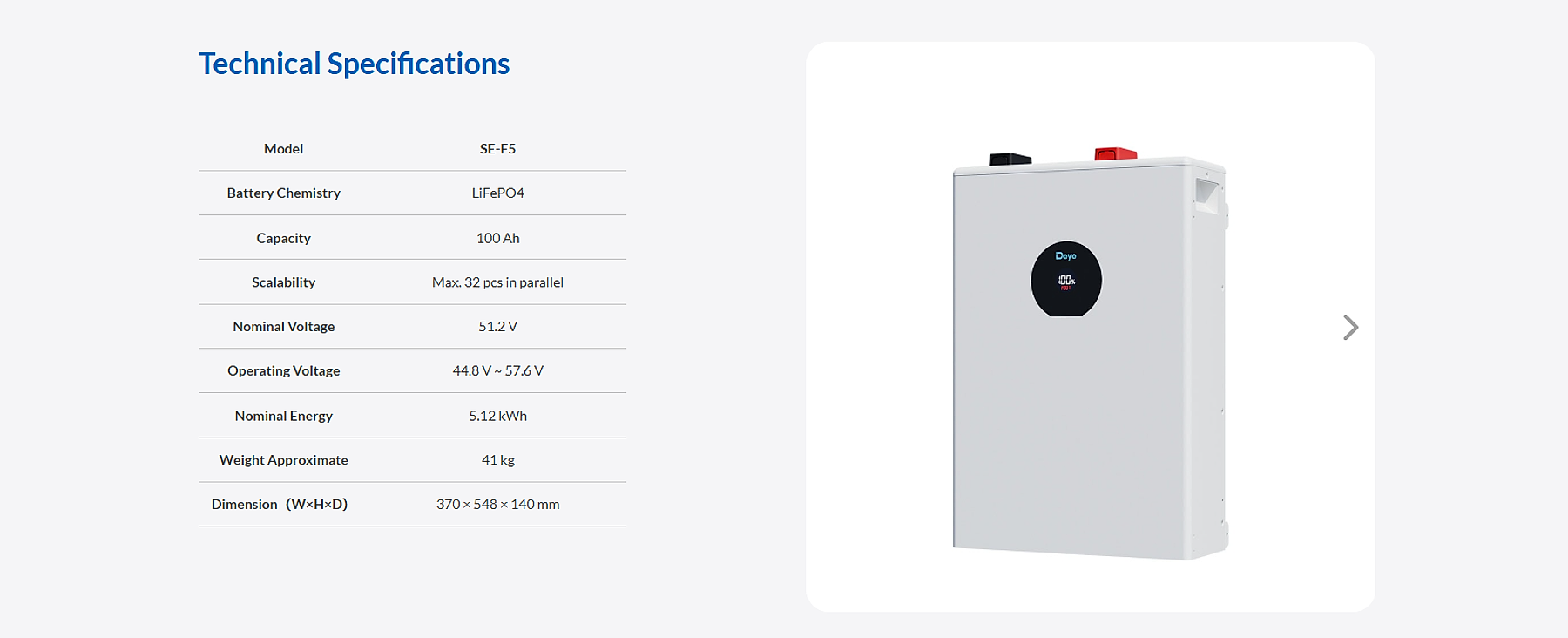

Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- UN38.3
- CE
- CB
Electrical
- Model
- SE-F5
- Battery chemistry
- LiFePO4
- Nominal energy
- 5.12 kWh
- Usable energy (80% DoD)
- 4.10 kWh
- Capacity
- 100 Ah
- Nominal voltage
- 51.2 V
- Operating voltage
- 44.8 – 57.6 V
System
- Scalability
- Max. 32 pcs in parallel
- Battery management
- Integrated BMS
Mechanical
- Dimensions (W × H × D)
- 370 × 548 × 140 mm
- Weight (approximate)
- 41 kg
Applications
Where this fits
- Apartments and small homes
- Essential-load backup — lights, fans, TV, internet
- First stage of a system planned for expansion
- Small shops and offices
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 6kW Off-Grid Inverter
2 × 5.12 kWh units in parallel are needed to support the 6kW at full rated output.
Deye 10kW Hybrid Inverter
3 × 5.12 kWh units in parallel are needed to support the 10kW at full rated output.
Deye 12kW Hybrid Inverter
3 × 5.12 kWh units in parallel are needed to support the 12kW at full rated output.
Deye 16kW Three Phase Hybrid Inverter
4 × 5.12 kWh units in parallel are needed to support the 16kW at full rated output.
Documentation

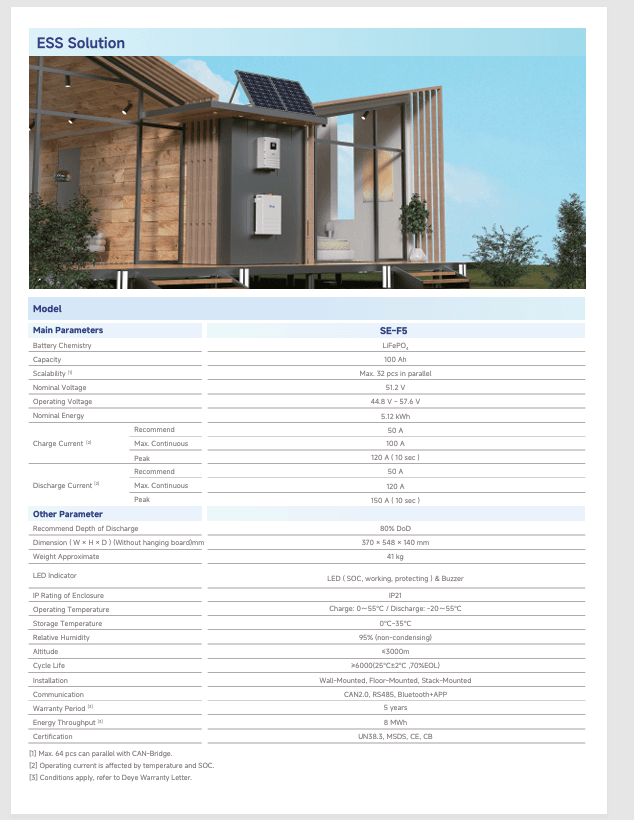

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
