Deye · SUN-16K-SG05LP3-EU-SM2
Deye 16kW Three Phase Hybrid Inverter
Commercial-grade three phase power conversion.
A 16 kW three-phase hybrid inverter for commercial buildings and large estates. Accepts up to 32 kW of PV across two MPPT trackers and passes through 70 A of grid supply, at 230/400 V and 50 Hz.
- 16 kW three phase output at 230 / 400 V, 50 Hz
- Accepts up to 32 kW of PV across 2 MPPT trackers
- 70 A continuous AC passthrough to load
- 300 A battery charge and discharge current
- Rated output
- 16 kW
- Phase
- Three phase
- Battery
- 48 V nominal
- MPP trackers
- 2
Warranty: 5 years standard, extendable to 10 years
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- IEC 61727, IEC 62116, CEI 0-21, EN 50549
- NRS 097, RD 1400, VDE-AR-N 4105
- IEC/EN 61000-6-1/2/3/4
- IEC/EN 62109-1, IEC/EN 62109-2
AC Input / Output
- Rated AC input/output active power
- 16 000 W
- Max AC input/output apparent power
- 17 600 VA
- Rated AC input/output current
- 24.3 / 23.2 A
- Max AC input/output current
- 26.7 / 25.5 A
- Max continuous AC passthrough (grid to load)
- 70 A
- Peak power (off-grid)
- 2 × rated power, 10 s
- Rated input/output voltage / range
- 220/380, 230/400 V (0.85 Un – 1.1 Un)
- Rated input/output grid frequency / range
- 50 Hz / 55 – 65 Hz
- Grid connection form
- 3L + N + PE
- Power factor adjustment range
- 0.8 leading to 0.8 lagging
- Total harmonic distortion (THDi)
- < 3% of nominal power
- DC injection current
- < 0.5% In
PV String Input
- Max PV access power
- 32 000 W
- Max PV input power
- 25 600 W
- Max PV input voltage
- 800 V
- Start-up voltage
- 160 V
- MPPT voltage range
- 160 – 650 V
- Rated PV input voltage
- 550 V
- Max operating PV input current
- 36 + 36 A
- Max input short-circuit current
- 54 + 54 A
- No. of MPP trackers / strings per tracker
- 2 / 2 + 2
Battery
- Battery type
- Lead-acid or lithium-ion
- Battery voltage range
- 40 – 60 V
- Max charging current
- 300 A
- Max discharging current
- 300 A
- Charging strategy for Li-ion
- Self-adaption to BMS
Efficiency
- Max efficiency
- 97.6%
- Euro efficiency
- 97.0%
- MPPT efficiency
- > 99%
General
- Operating temperature range
- −40 to +60 °C, derating above 45 °C
- Permissible ambient humidity
- 0 – 100%
- Permissible altitude
- 3000 m
- Noise
- < 60 dB
- Ingress protection (IP) rating
- IP65
- Inverter topology
- Non-isolated
- Over voltage category
- OVC II (DC), OVC III (AC)
- Cabinet size (W × H × D)
- 456 × 750 × 268.5 mm
- Weight
- 51.9 kg
- Type of cooling
- Intelligent air cooling
- Communication interface
- RS485 / RS232 / CAN
- Monitoring
- GPRS / WiFi / Bluetooth / 4G / LAN (optional)
- Surge protection level
- Type II (DC), Type II (AC)
Applications
Where this fits
- Commercial buildings and office complexes
- Factories, workshops and cold rooms
- Hotels, schools and healthcare facilities
- Large estates on a three phase supply
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 5kWh Lithium Battery
4 × 5.12 kWh units in parallel are needed to support the 16kW at full rated output.
Deye 10kWh Lithium Battery
2 × 10.64 kWh units in parallel are needed to support the 16kW at full rated output.
Deye 12kWh Lithium Battery
2 × 12.03 kWh units in parallel are needed to support the 16kW at full rated output.
Deye 16kWh Lithium Battery
2 × 16 kWh units in parallel are needed to support the 16kW at full rated output.
Documentation

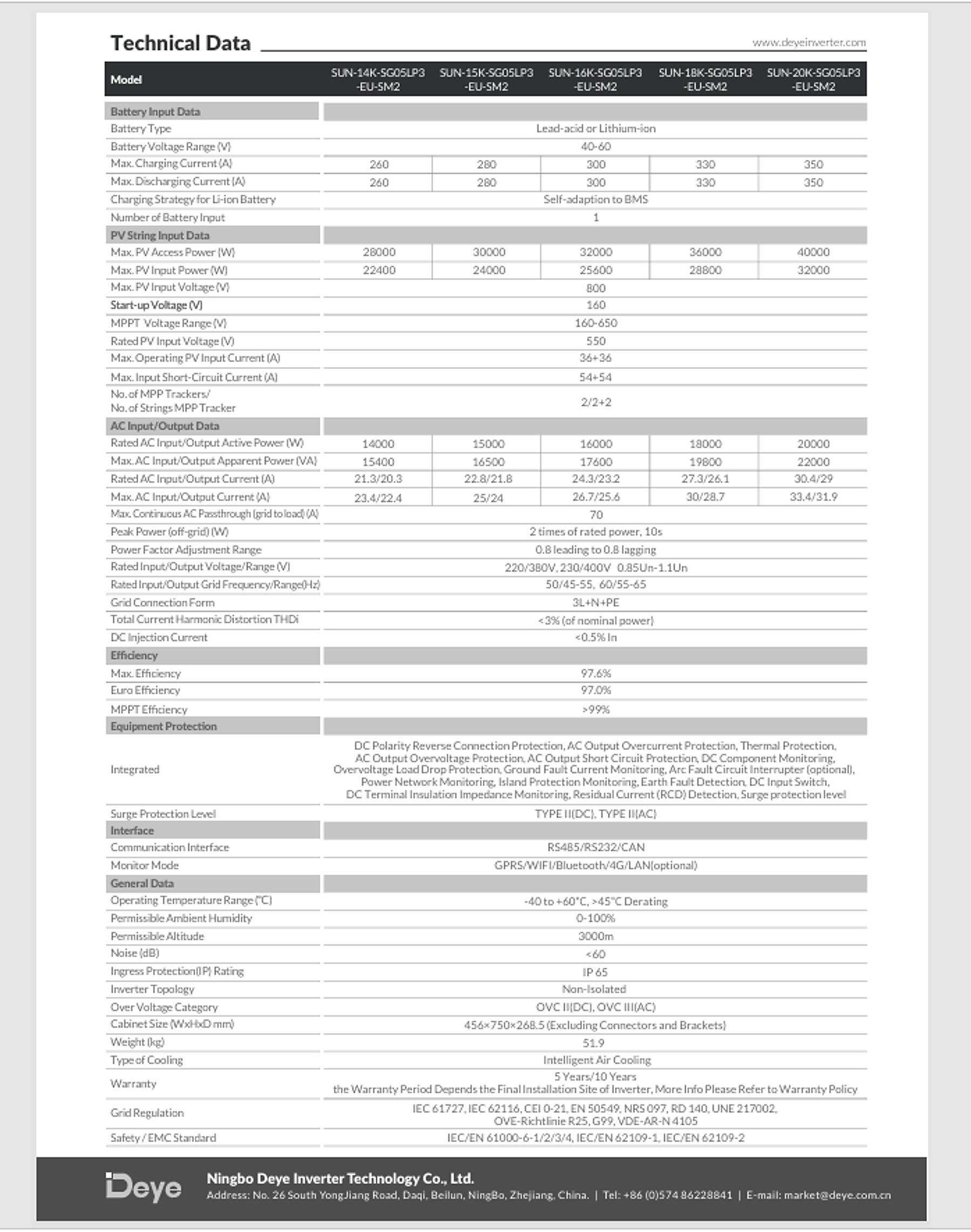

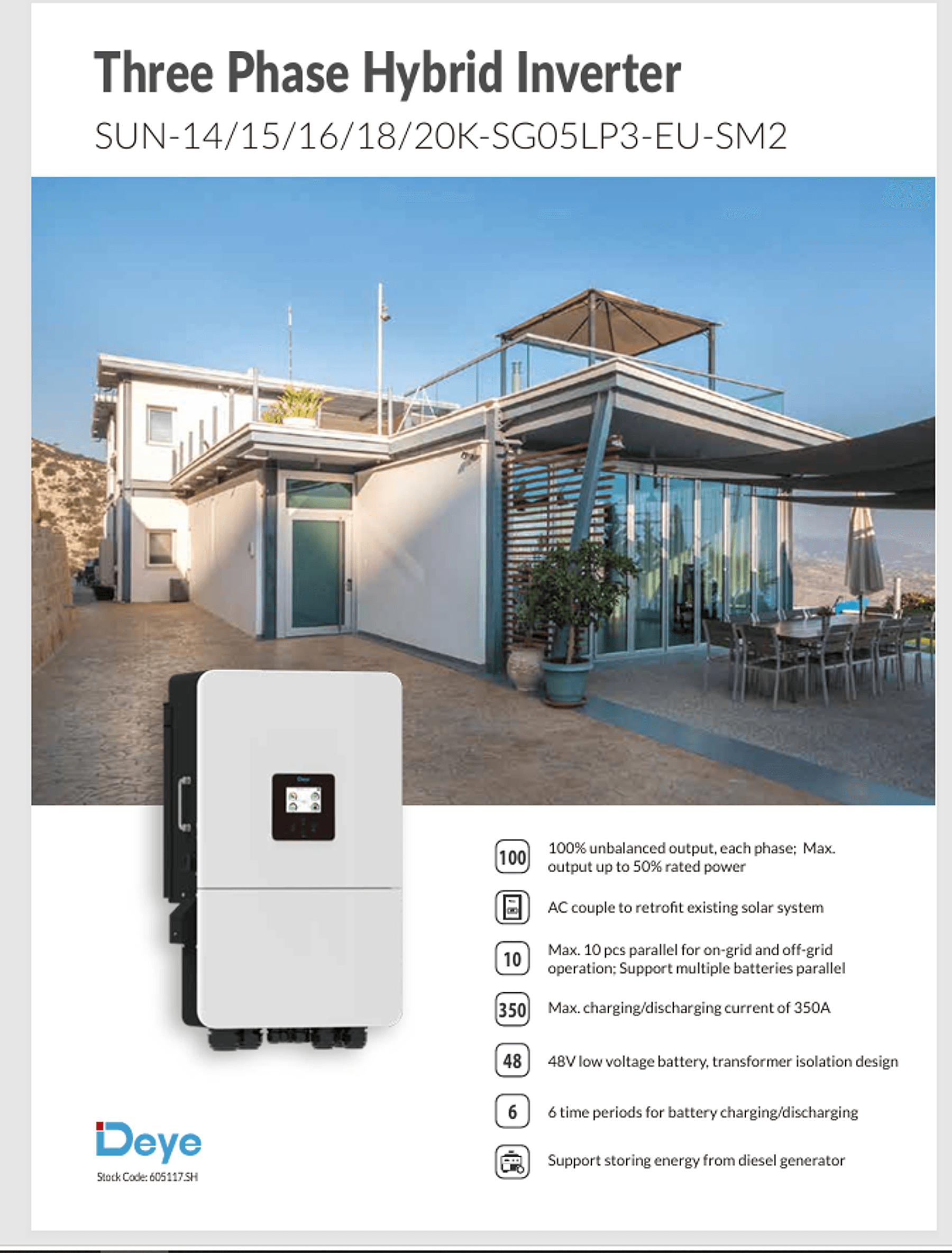

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
