JinkoSolar · JKM650N-66QL6-BDV
JinkoSolar Tiger Neo III 650W
24% efficiency, and it keeps it in the heat.
An N-type TOPCon bifacial module producing 650 W at 24.06% efficiency. The rear face adds up to 85% additional generation from reflected light, and a −0.26%/°C power coefficient means less is lost on a 38 °C afternoon.
- 650 W at 24.06% module efficiency
- Bifacial — 85 ± 5% rear-side generation
- Low −0.26%/°C temperature coefficient
- 12-year product and 30-year linear power warranty
- Peak output
- 650 W
- Efficiency
- 24.06%
- Cells
- 264
- Bifacial
- Yes
Warranty: 12-year product warranty, 30-year linear power warranty
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- IEC 61215:2021 / IEC 61730:2022
- IEC 61701 / IEC 62716 / IEC 60068 / IEC 62804
- ISO 9001:2015 / ISO 14001:2015 / ISO 45001:2018
Electrical (STC)
- Maximum power (Pmax)
- 650 Wp
- Module efficiency
- 24.06%
- Maximum power voltage (Vmp)
- 42.57 V
- Maximum power current (Imp)
- 15.27 A
- Open-circuit voltage (Voc)
- 50.26 V
- Short-circuit current (Isc)
- 15.98 A
- Power sorting
- 0 – +3%
Electrical (BNPI — bifacial gain)
- Maximum power (Pmax)
- 724 Wp
- Maximum power voltage (Vmp)
- 42.52 V
- Maximum power current (Imp)
- 17.04 A
- Open-circuit voltage (Voc)
- 50.38 V
- Short-circuit current (Isc)
- 17.80 A
- Bifacial factor
- 85 ± 5%
Temperature & Operating
- Temperature coefficient of Pmax
- −0.26 %/°C
- Temperature coefficient of Voc
- −0.24 %/°C
- Temperature coefficient of Isc
- +0.046 %/°C
- Operating temperature
- −40 to +70 °C
- Maximum system voltage
- 1500 V DC (IEC)
- Maximum series fuse rating
- 35 A
Mechanical
- Cell type
- N-type mono-crystalline
- Number of cells
- 264 (66 × 4)
- Dimensions
- 2382 × 1134 × 30 mm
- Weight
- 32.5 kg
- Front glass
- 2.0 mm, anti-reflection coating
- Back glass
- 2.0 mm, heat strengthened
- Frame
- Anodised aluminium alloy
- Junction box
- IP68 rated
- Connector type
- JK03M / JK03M2
- Mechanical load
- 5400 Pa front / 2400 Pa rear
- Protection class
- Class II
- IEC fire type
- Class C
Warranty & Degradation
- Product warranty
- 12 years
- Linear power warranty
- 30 years
- First year degradation
- 1%
- Annual degradation (years 2–30)
- 0.35%
- Power retained at year 30
- 88.85%
Applications
Where this fits
- Residential rooftop arrays
- Ground-mounted installations with reflective surfaces
- Commercial rooftops and carports
- Any array where roof space is constrained
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 6kW Off-Grid Inverter
4–9 modules per string. Up to 14 × 650 W modules total.
Deye 10kW Hybrid Inverter
4–9 modules per string. Up to 24 × 650 W modules total.
Deye 12kW Hybrid Inverter
4–9 modules per string. Up to 29 × 650 W modules total.
Deye 16kW Three Phase Hybrid Inverter
4–14 modules per string. Up to 39 × 650 W modules total.
Documentation

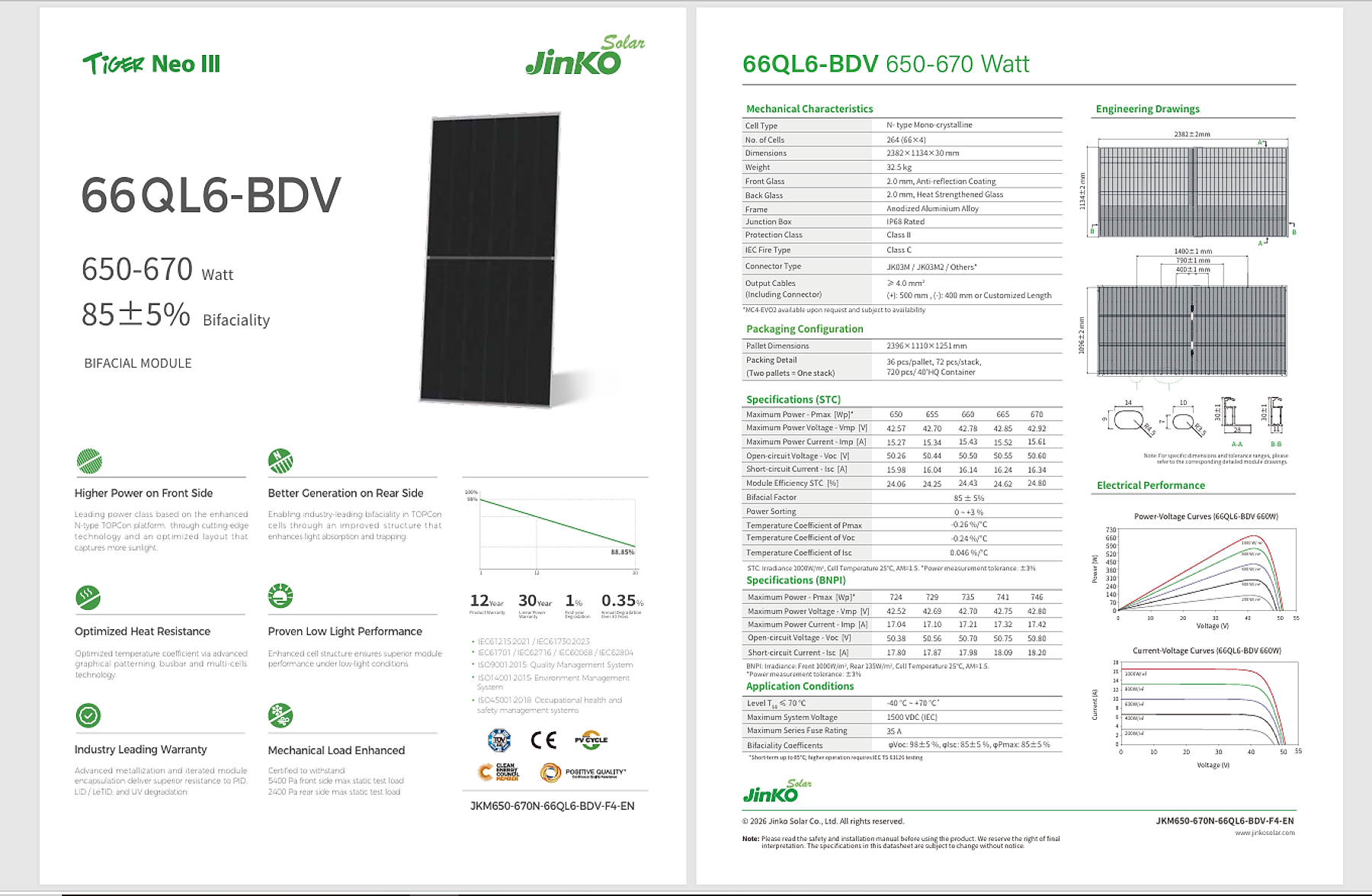

Manufacturer datasheet
The original pages, as published by JinkoSolar. Open full size to read the complete technical tables.
