JinkoSolar · JKM715N-66HL5-BDV
JinkoSolar Tiger Neo 715W
Fewer modules, fewer mounts, fewer connections.
A 715 W N-type TOPCon bifacial module with HOT 3.0 and SMBB cell technology. The highest output per module we supply, which means less mounting hardware, less cabling and less roof penetration for the same array size.
- 715 W peak output, our highest capacity module
- N-type HOT 3.0 with SMBB cell technology
- Anti-PID guarantee and dual-glass construction
- 12-year product and 30-year linear power warranty
- Peak output
- 715 W
- Efficiency
- 23.02%
- Cells
- 132
- Bifacial
- Yes
Warranty: 12-year product warranty, 30-year linear power warranty
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- IEC 61215:2021 / IEC 61730:2023
- IEC 61701 / IEC 62716 / IEC 60068 / IEC 62804
- ISO 9001:2015 / ISO 14001:2015 / ISO 45001:2018
Electrical (STC)
- Maximum power (Pmax)
- 715 Wp
- Module efficiency
- 23.02%
- Maximum power voltage (Vmp)
- 40.77 V
- Maximum power current (Imp)
- 17.54 A
- Open-circuit voltage (Voc)
- 48.88 V
- Short-circuit current (Isc)
- 18.60 A
- Power sorting
- 0 – +3%
Electrical (BNPI: bifacial gain)
- Maximum power (Pmax)
- 790 Wp
- Maximum power voltage (Vmp)
- 40.80 V
- Maximum power current (Imp)
- 19.36 A
- Open-circuit voltage (Voc)
- 48.85 V
- Short-circuit current (Isc)
- 20.55 A
- Bifacial factor
- 80 ± 5%
Temperature & Operating
- Temperature coefficient of Pmax
- −0.29 %/°C
- Temperature coefficient of Voc
- −0.25 %/°C
- Temperature coefficient of Isc
- +0.045 %/°C
- Operating temperature
- −40 to +70 °C
- Maximum system voltage
- 1500 V DC (IEC)
- Maximum series fuse rating
- 35 A
Mechanical
- Cell type
- N-type mono-crystalline
- Number of cells
- 132 (66 × 2)
- Dimensions
- 2384 × 1303 × 33 mm
- Weight
- 37.5 kg
- Front glass
- 2.0 mm, anti-reflection coating
- Back glass
- 2.0 mm, heat strengthened
- Frame
- Anodised aluminium alloy
- Junction box
- IP68 rated
- Connector type
- JK03M / JK03M2
- Mechanical load
- 5400 Pa front / 2400 Pa rear
- Protection class
- Class II
- IEC fire type
- Class C
Warranty & Degradation
- Product warranty
- 12 years
- Linear power warranty
- 30 years
- First year degradation
- 1%
- Annual degradation (years 2–30)
- 0.40%
- Power retained at year 30
- 87.4%
Applications
Where this fits
- Large residential and commercial rooftops
- Ground-mounted utility and estate arrays
- Installations minimising mounting and cabling cost
- Projects targeting maximum kW per roof
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits, not from a marketing table.
Deye 6kW Off-Grid Inverter
4–9 modules per string. Up to 13 × 715 W modules total.
Deye 10kW Hybrid Inverter
4–9 modules per string. Up to 22 × 715 W modules total.
Deye 12kW Hybrid Inverter
4–9 modules per string. Up to 26 × 715 W modules total.
Deye 16kW Three Phase Hybrid Inverter
4–14 modules per string. Up to 35 × 715 W modules total.
Documentation

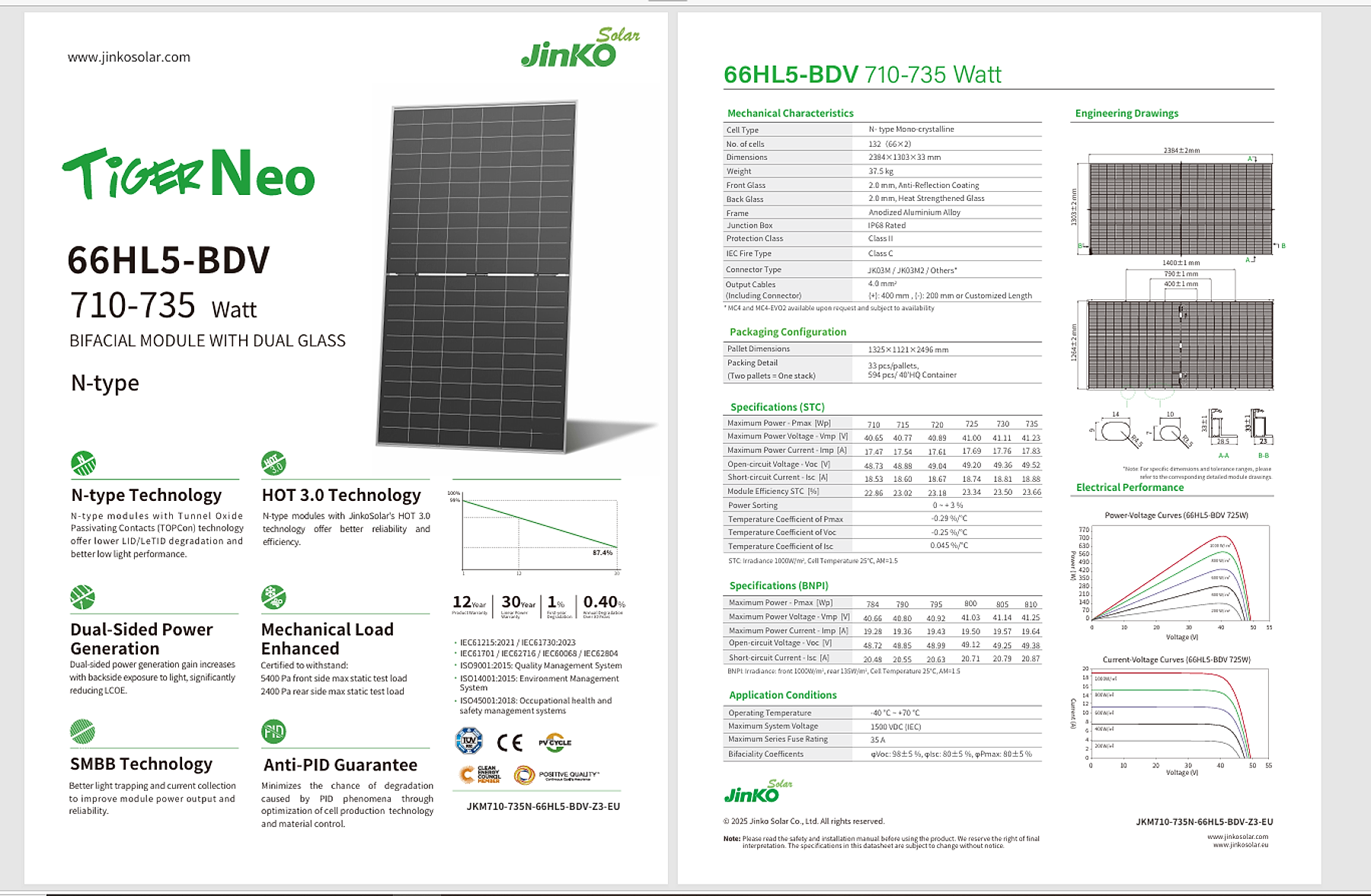

Manufacturer datasheet
The original pages, as published by JinkoSolar. Open full size to read the complete technical tables.
