Deye · RW-F16
Deye 16kWh Lithium Battery
Serious reserve for serious demand.
A 16 kWh, 314 Ah LiFePO4 battery for large homes and commercial premises. Parallels up to 32 units, so a single design can scale from one building to a whole estate.
- 16 kWh nominal, 14.4 kWh usable at 90% DoD
- 314 Ah at 51.2 V nominal
- Floor-standing format with carry handles
- Up to 32 units in parallel
- Nominal energy
- 16 kWh
- Usable energy
- 14.4 kWh
- Capacity
- 314 Ah
- Voltage
- 51.2 V
Warranty: 5 years
Supplied for: Nigerian grid, 230 V / 50 Hz
Technical Data
Full specification
Transcribed from the manufacturer datasheet. Ask us for anything not listed and we will send it.
Certification
- UN38.3
- CE
- CB
Electrical
- Model
- RW-F16
- Battery chemistry
- LiFePO4
- Nominal energy
- 16 kWh
- Usable energy (90% DoD)
- 14.4 kWh
- Capacity
- 314 Ah
- Nominal voltage
- 51.2 V
- Operating voltage
- 44.8 – 57.6 V
System
- Scalability
- Max. 32 pcs in parallel
- Battery management
- Integrated BMS
Mechanical
- Dimensions (W × H × D)
- 480 × 830 × 235 mm
- Weight (approximate)
- 122 kg
Applications
Where this fits
- Large residences and estates
- Commercial premises with extended operating hours
- Pairing with 12 kW and 16 kW inverters
- Cold rooms and continuous-duty equipment
System Compatibility
What it pairs with
Calculated from rated power, battery discharge current and MPPT voltage limits — not from a marketing table.
Deye 6kW Off-Grid Inverter
A single 16 kWh unit supports the 6kW at full rated output.
Deye 10kW Hybrid Inverter
A single 16 kWh unit supports the 10kW at full rated output.
Deye 12kW Hybrid Inverter
A single 16 kWh unit supports the 12kW at full rated output.
Deye 16kW Three Phase Hybrid Inverter
2 × 16 kWh units in parallel are needed to support the 16kW at full rated output.
Documentation

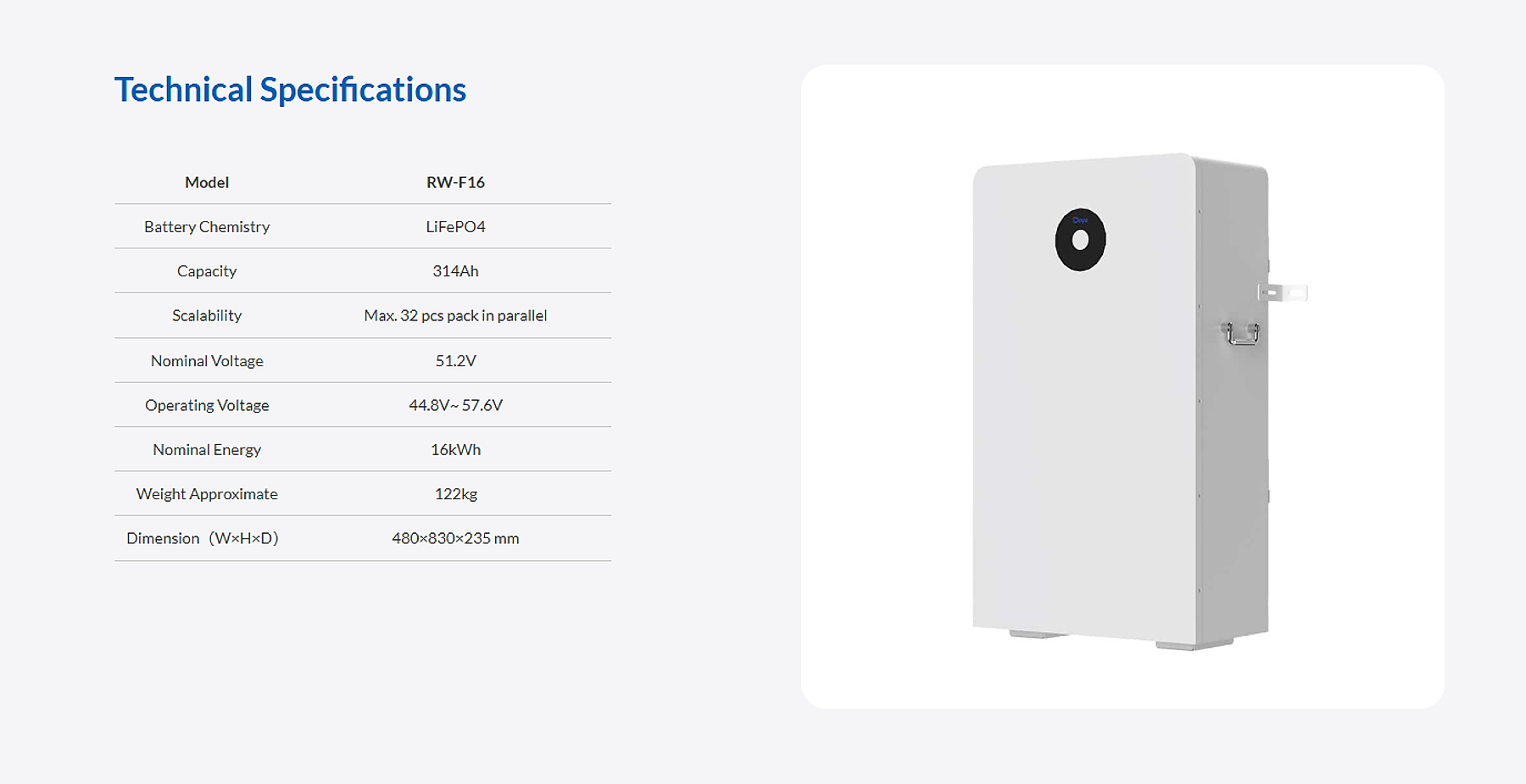

Manufacturer datasheet
The original pages, as published by Deye. Open full size to read the complete technical tables.
